The FanMist Equipment Package
The FanMist system is automated and integrated sequentially by the operation of the pump station PLC coordinated with a zone humidistat controlling the on/off timing cycle of the pump sending 1000 psi water to all fans via high pressure “installer friendly” flexible tube with Slip-Lok fittings. Each equipment package is designed to maintain your desired relative humidity (RH) within ± 3% of your humidity set-point (e.g. 45%RH @ 72˚F) during winter manufacturing operations.
All equipment packages feature high pressure Nozzles which are located on the mist ring mounted directly to the face of each fan. Nozzles open and close at 350 psi for robust atomization and excellent control over water particle size for quick evaporation.

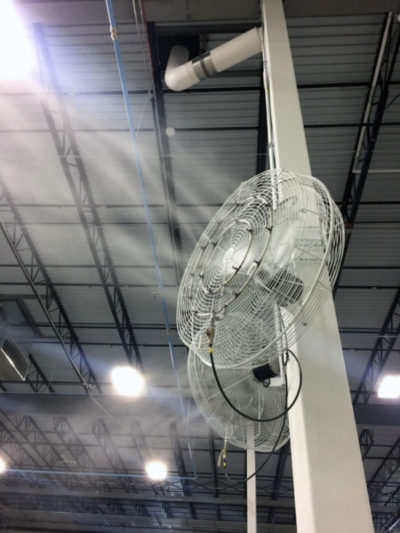

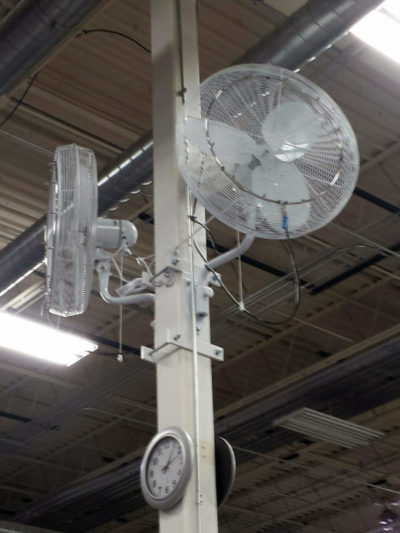

Atomized moisture plumes from the face of each fan require 4’ diameter by 20’ long unobstructed air space for complete evaporation. Evaporated moisture equalizes quickly over all open air space (Dalton’s Law of Partial Pressure). Fans are located on columns, walls or ceiling hung and include bracketing.
